FBPB-2601-S
DatasheetCategory:

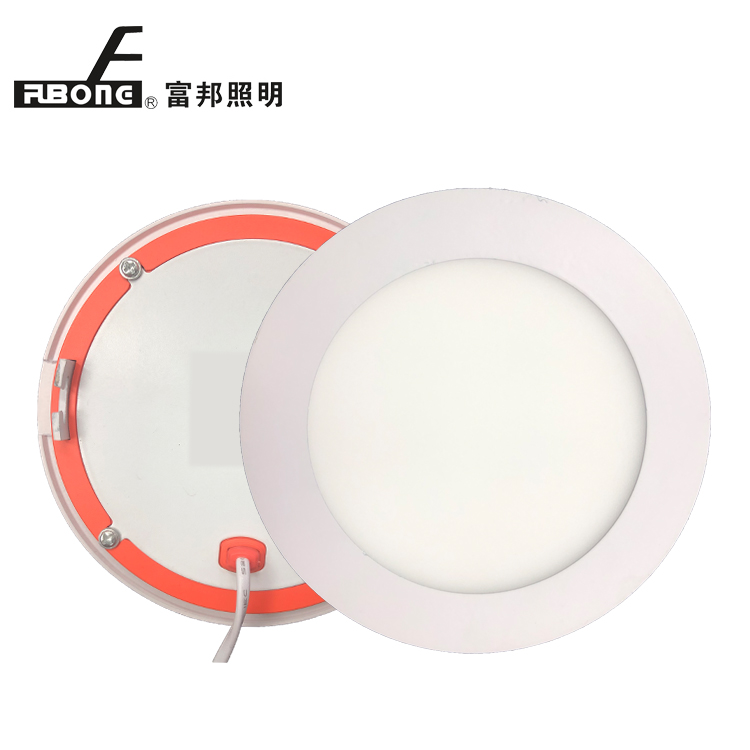

LED Panel LightModel No.: FBPB-2601-S
Description
| Materials | Aluminum |
| Voltage | AC85-265V |
| Lumen | 60-75lm/W |
| CCT | 3000-6000K |
| RA | ≥70 |
| Model | Reference No. | Watt | Dimension(mm) | Open side(mm) |
| AL-2803 3W | FBPB-R2601-R3W | 3W | φ85*H25 | φ75*H25 |
| AL-2806 6W | FBPB-R2601-R6W | 6W | φ120*H25 | φ105*H25 |
| AL-2809 9W | FBPB-R2601-R9W | 9W | φ150*H25 | φ135*H25 |
| AL-2812 12W | FBPB-R2601-R12W | 12W | φ170*H25 | φ150*H25 |
| AL-2815 15W | FBPB-R2601-R15W | 15W | φ190*H25 | φ175*H25 |
| AL-2818 18W | FBPB-R2601-R18W | 18W | φ225*H25 | φ205*H25 |
